ROS Basics in 5 days

---

Unit 8:   Solutions

  Index

• Solution Exercise 8.6

Solution Exercise 8.6

- Exercise 8.6 -

For this exercise, we will assume that our package is called exercise_56, our launch file is called move_drone.launch, and our Python file is called move_drone.py.

First of all, you have to make sure that the Action Server is up and running. Otherwise, you won't be able to complete this exercise. For that, you can execute the following command:

rostopic list | grep ardrone_action_server

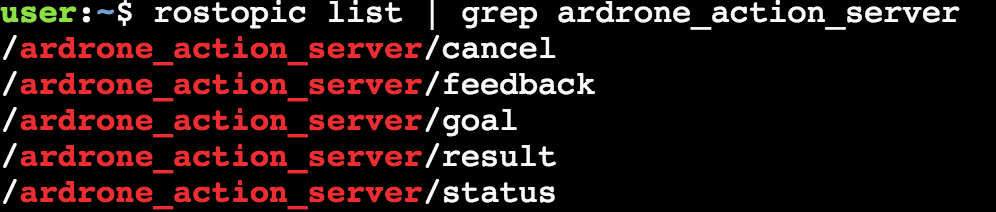

If the Action Server is running, you will see this:

If you don't get this output, it means that your Action Server is not running, so you will have to launch it. For that, just execute the following command:

roslaunch ardrone_as action_server.launch

When you are sure that the Action Server is running, you can then proceed with the Exercise. Below you can check a possible solution to this Exercise.

- Launch File: move_drone.launch -

<launch>
    <node pkg="exercise_86" type="move_drone.py" name="drone_action_client" output="screen" />
</launch>

- Python File: move_drone.py -

#! /usr/bin/env python

import rospy
import time
import actionlib
from ardrone_as.msg import ArdroneAction, ArdroneGoal
from actionlib_msgs.msg import GoalStatus
from geometry_msgs.msg import Twist
from std_msgs.msg import Empty


class DroneActionClient:
    def __init__(self):
        rospy.init_node('drone_action_client')
        self.action_server_name = '/ardrone_action_server'
        self.client = actionlib.SimpleActionClient(self.action_server_name, ArdroneAction)
        self.move_pub = rospy.Publisher('/cmd_vel', Twist, queue_size=1)
        self.takeoff_pub = rospy.Publisher('/drone/takeoff', Empty, queue_size=1)
        self.land_pub = rospy.Publisher('/drone/land', Empty, queue_size=1)
        self.move_msg = Twist()
        self.takeoff_msg = Empty()
        self.land_msg = Empty()
        self.rate = rospy.Rate(1)
        self.nImage = 1

    def wait_for_server(self):
        rospy.loginfo('Waiting for action server ' + self.action_server_name)
        self.client.wait_for_server()
        rospy.loginfo('Action server found... ' + self.action_server_name)

    def send_goal(self, nseconds):
        goal = ArdroneGoal()
        goal.nseconds = nseconds
        self.client.send_goal(goal, feedback_cb=self.feedback_callback)

    def feedback_callback(self, feedback):
        print('[Feedback] image n.%d received' % self.nImage)
        self.nImage += 1

    def takeoff(self, duration=3):
        rospy.loginfo('Taking off...')
        for _ in range(duration):
            self.takeoff_pub.publish(self.takeoff_msg)
            time.sleep(1)

    def land(self, duration=3):
        rospy.loginfo('Landing...')
        for _ in range(duration):
            self.move_msg.linear.x = 0
            self.move_msg.angular.z = 0
            self.move_pub.publish(self.move_msg)
            self.land_pub.publish(self.land_msg)
            time.sleep(1)

    def move_drone(self):
        self.move_msg.linear.x = 1
        self.move_msg.angular.z = 1
        self.move_pub.publish(self.move_msg)
        rospy.loginfo('Moving around...')

    def execute(self):
        self.wait_for_server()
        self.takeoff()
        self.send_goal(10)

        state_result = self.client.get_state()

        while state_result in [GoalStatus.PENDING, GoalStatus.ACTIVE, GoalStatus.PREEMPTING]:
            self.move_drone()
            self.rate.sleep()
            state_result = self.client.get_state()
            rospy.loginfo('Moving around...')
            rospy.loginfo("state_result: " + str(state_result))

        rospy.loginfo("[Result] State: " + str(state_result))
        if state_result == GoalStatus.ABORTED:
            rospy.logerr("Something went wrong in the Server Side")
        if state_result == GoalStatus.REJECTED:
            rospy.logwarn("The goal was rejected by the Server")
        if state_result == GoalStatus.SUCCEEDED:
            rospy.loginfo("Goal succeeded!")

        self.land()

def main():
    drone_client = DroneActionClient()
    drone_client.execute()

if __name__ == '__main__':
    main()

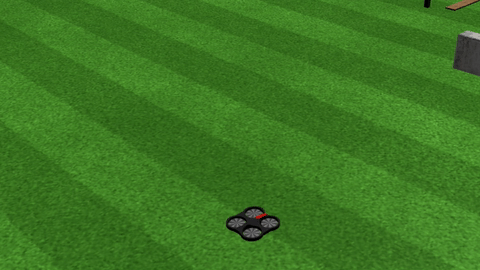

So, as you can see in the above code, the logic of the Python script is quite simple:

• During the first 3 seconds, the drone will takeoff.
• Then, it will begin to move doing circles until the Action finishes
• When the Action finished, the drone will land
